ROLEI PEF 500 Stationary faceting and deburring machine with variable facet angle

Preview: ROLEI PEF500 Facettier und Entgratgerät

Preview: ROLEI PEF500 einfache und sichere Bedienung

Preview: Perfekte Facette an Messingblech mit ROLEI PEF500

Preview: Arretierschraube für exakte Höheneinstellung

Preview: Einstellschraube mit Feingewinde für exakte Facettenbreite

Preview: Grundprinzip für ROLEI Entgrattechnik mit Scheiben

Preview: Perfekter Kreuzschliff mit ROLEI Technik

ROLEI PEF500 einfache und sichere Bedienung

Perfekte Facette an Messingblech mit ROLEI PEF500

Arretierschraube für exakte Höheneinstellung

Einstellschraube mit Feingewinde für exakte Facettenbreite

Grundprinzip für ROLEI Entgrattechnik mit Scheiben

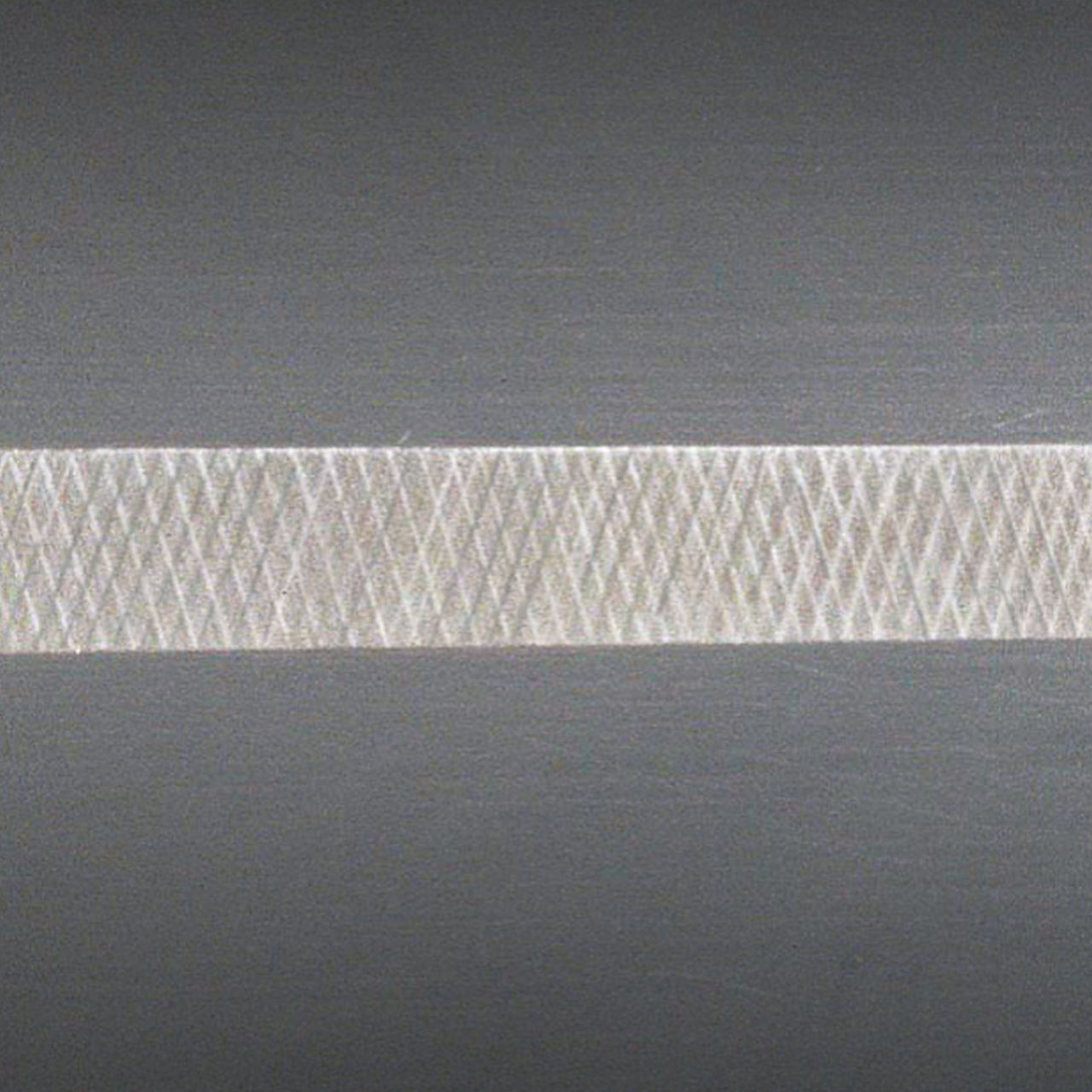

Perfekter Kreuzschliff mit ROLEI Technik

€2,698.60 *

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 2-5 workdays

Order number: 30200
Packing Unit: Stück
Purchase steps: 1
Minimum purchase: 1

Very sturdy , highly precise deburring and faceting machine for all metals from INOX to... more

Close menu

Product information "ROLEI PEF 500 Stationary deburring and bevelling machine with variable facet angle"

Very sturdy, highly precise deburring and faceting machine for all metals from INOX to aluminum. Adjustable faceting angle and continuously adjustable facet width (exact setting using knurled graduation).
The facet width can be precisely adjusted using a handwheel. The parts are faceted with perfect cross-cut and completely free of burrs . The disc consumption is readjusted using a handwheel with a threaded spindle.

Features:

Infinitely adjustable faceting angle from 30° to 45° up to 60°.
The faceting angle is set using the motor swivel on the angle ruler.
Facet width from 0–10 mm.
Faceting possible from workpiece thicknesses of 2.5 mm.
Optimized, fixed speed of 2,800 min-1.
Simple and safe operation.
Inexpensive replacement grinding disc with an enormous service life (a disc in use often lasts for months).
Standard with suction flange for industrial vacuum cleaners (inner Ø 35 mm).

Set content:
1 ROLEI PEF 500 basic device
1 ROLEI special flap disc, grit 60

Tool mount:	M14 thread
Device type:	Deburring machine
Cable / Battery:	cable
Suitable tools:	Discs
Plug type / mains connection:	3 phases 380 volts ~ 50 Hz, EU (C+F) 220 - 240 volts ~ 50 - 60 Hz
Power consumption:	550 watts
Max. tool dimension:	Durchmesser 170 mm
WEEE-Reg.-No.:	DE 51395731
Speed in min-1:	2.800
